Xtreme Clutch Conversion kit - TOYOTA JZ Triple Plate - GM Spline 26x28.6mm G-Force/Samsonas/Sequential

Xtreme Clutch Conversion kit - TOYOTA JZ Triple Plate - GM Spline 26x28.6mm G-Force/Samsonas/Sequential

This is a special order item!!
If stock is available in the European Warehouse delivery time will be around one week
If there is no European stock delivery time may vary
If you are concerned about delivery please contact us prior to order
  • Clutch Disc Diameter (mm)
    230
  • Clutch Disc Spline Count
    26
  • Clutch Disc Spline Diameter (mm)
    28.6
  • Torque (Nm)
    2750
  • Design
    Triple Plate
  • Stage
    Multiplate - track use only
  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Weight [KG]:
    21

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
  Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Product Features:

  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
$1,069.03

Original: $3,054.38

-65%
Xtreme Clutch Conversion kit - TOYOTA JZ Triple Plate - GM Spline 26x28.6mm G-Force/Samsonas/Sequential—

$3,054.38

$1,069.03

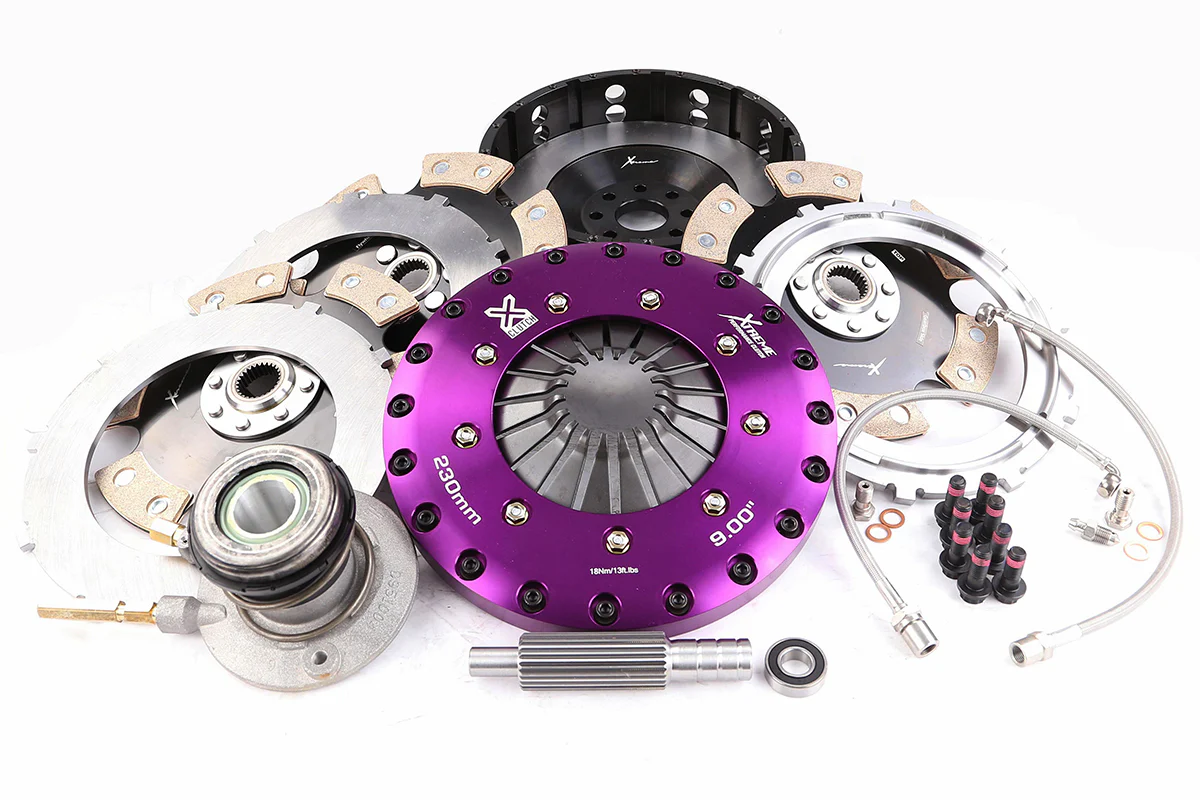

Product image 1
